Features:

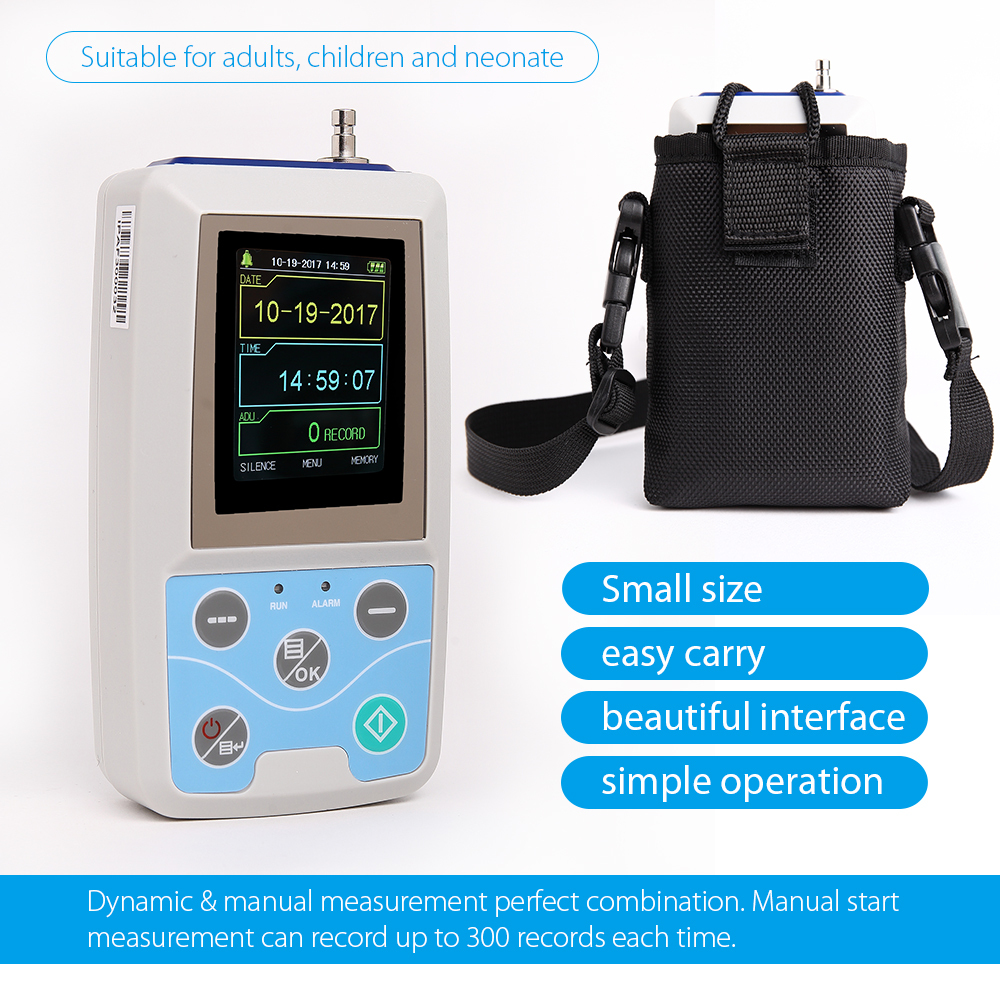

1)Compact and portable, user-friend interface, easy to use
2)Patient range: adult, pediatric, neonate
3)24 hours ambulatory NIBP monitoring function, up to 350 groups of ambulatory NIBP data can be recorded once.
4)Perfect combination of the automatic and manual measurement method, up to 300 groups of data can be recorded once by manual
measure.

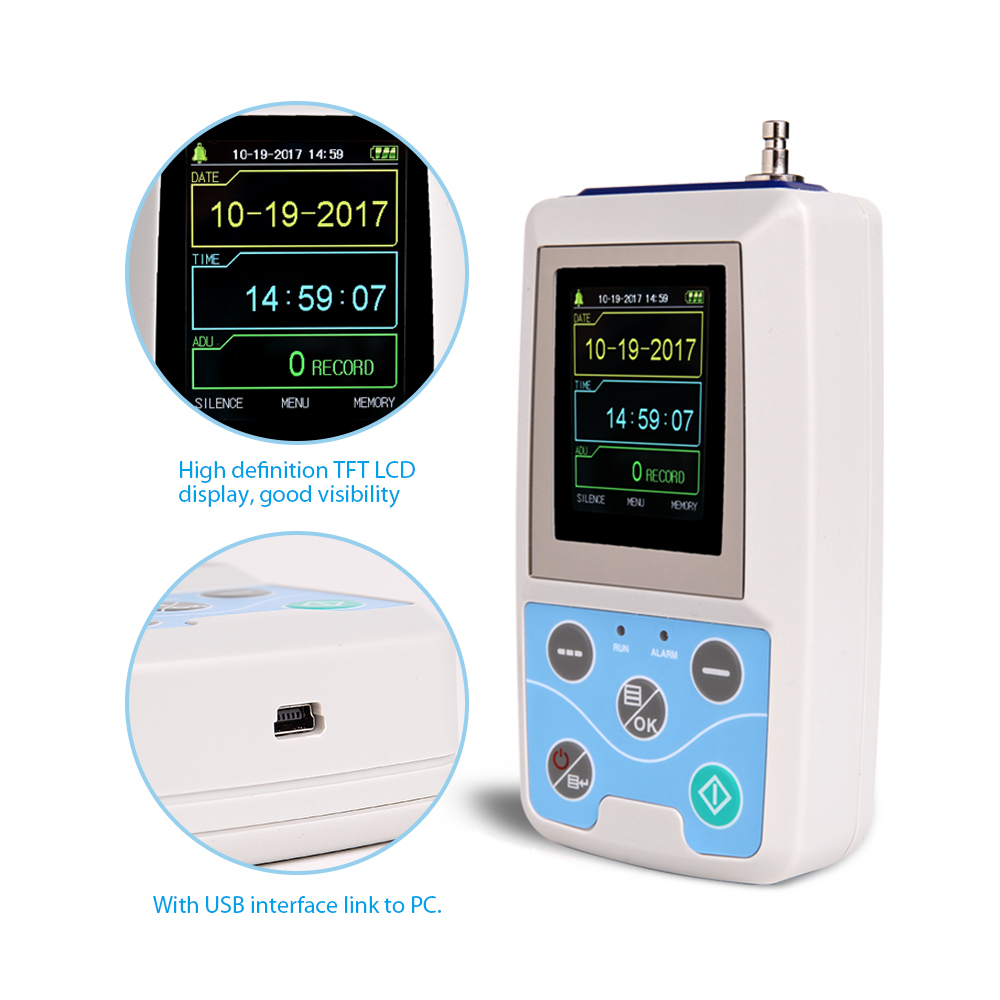

5)High-definition color TFT display, strong visibility
6)By data review interface such as "data list", "trend graph", "big font", NIBP data is clear at a glance
7)Display of low power prompt, alarm, error message, and time
8)Supply two kinds of unit: mmHg / kPa
9)Display interface can be switched between Chinese and English
10)Parameter alarm dispose function is optional
11)Communicate with PC, PC software can achieve data review, measured results analysis, view of trend graph, reports printing and
other functions
Software features:
1)Connect to the device by USB interface.
2)Download NIBP measure results from the terminal device.
3)Display of scoop-shaped trend graph, filling-type trend graph, histogram, pie chart, correlation line graph.
4)Edit every piece of NIBP data, and add an annotation to it.
5)Edit basic information, doctor's advice, NIBP status instruction, current medicine-taken information, etc.
6)Support report printing and print preview.
Performance:
NIBP:
Measure Method: Oscillometry
Measure Mode: The upper arm measure
Automatic Measure Interval: 15, 20, 30, 40, 60, 90, 120, 180, 240 minutes
Measure range: Pressure:0kPa (0mmHg)~38.67kPa (290mmHg)
Resolution: 1mmHg
Accuracy: ±3mmHg
Prompt parameter: SYS, DIA
Inflation: automatic inflation by force pump
Deflation: automatic multistep deflation
PR:
Measure range: 40bpm~240bpm
Resolution:1bpm
Safety:
Power supply: DC 3V (2×1.5V AA alkaline dry battery)(Batteries not included)
Safety type: internally powered device, type BF applied part with defibrillation protection
Physical characteristic
Dimension: 128mm(L) ×69mm(W) × 36mm(H) (without packaging)
Weight: <300 g (with battery)
Operational environment:
Temperature: 5 C~40 C
Relative humidity: 15%~85%
Atmospheric pressure: 700hPa~1060hPa
Specific EMC, climate, mechanical environment: Do not use a mobile phone in the vicinity of the device, for the strong radiation
field produced by mobile phone would interfere with the normal function of use.
Storage environment:
Temperature: -20C ~ +55 C
Relative humidity: ≤95 %
Specific EMC, climate, mechanical environment: The device after packaged should be stored in a environment of -20C~+55C, relative
humidity no more than 95%, and well-ventilated room with no corrosive gas. Strong shock, vibration and snow and rain should be
avoided during transportation.
